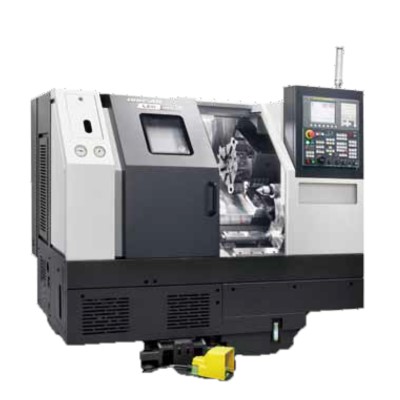

Leo 1600
Leo 1600
6 Inch Compact Horizontal Turning Center
– Ø320 x 303mm wide machining area with compact design
– DOOSAN’s reliable spindle with highly durable bearing structure
– Highly rigid roller type LM guideways with fast 30 m/min feedrate
| Max. Turning Diameter | (mm) | 320 |
| Max. Turning Length | (mm) | 303 |
| Standard Chuck Size | (inch) | 6 |
| Bar Working Diameter | (mm) | 45 |
| Max. Spindle Speed | (r/min) | 4000 |
| Max. Spindle Motor Power | (kW) | 7.5 |
