TG-4010/4020/4030
TG-4010/4020/4030

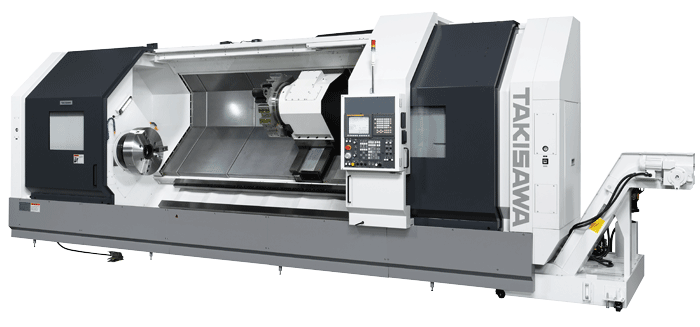

Powerful and Highly Rigid Large CNC Turning Center TG-4010/4020/4030
- Most Powerful Turning Capability In This Class Of Machine
- A space is provided above the spindle to allow a long boring bar to be used.
- Applicable to industry fields related to wind power generation, energy, earth excavation, ships, vehicles, and power machinery
Max. Turning Length (A-Type Spindle)Large Diameter WorkHeavy-Duty Cutting
| TG-4010 | TG-4020 | TG-4030 | |
| Max. Turning Length | 1000mm | 2100mm | 3200mm |
| Spindle Type | Spindle-Through Hole Diameter |
Bearing Inside Diameter |
|
| A | Ø131 (5.16″) | Ø180 | Standard |
| B | Ø185 (7.28″) | Ø260 | Optional |
|
Turret Type |
Max. Turning Diameter |
|
| Turning Turret | 10-Station (T10) | Ø710mm |
| 10-Station (T10) | Ø710mm | |
| 10-Station (T10S) | Ø650mm | |
| Turning & Milling Turret | 12-Station (T12M) | Ø580mm |
